Concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards
Provide coverage in 360 degrees around it
Supports repeater mode
(2) Ethernet ports
Supports 802.3af/at PoE input on the first port, and passive PoE output on the second port
Supports IPsec hardware acceleration
International version supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

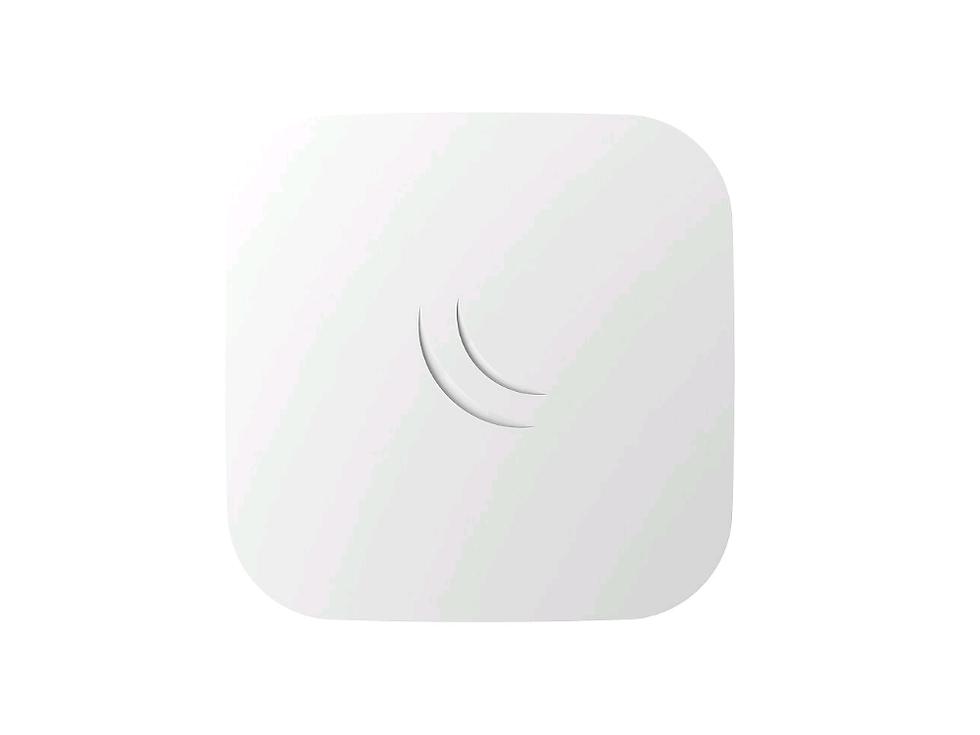

MikroTik RBcAPGi-5acD2nD cAP ac Dual-band AC Access Point
Dimensions Round case: ⌀ 136 mm, height: 30 mm
Square case: 145 mm x 145 mm x 30 mm
CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz Operating System RouterOS L4 RAM Size 128 MB Storage size 16 MB FLASH Interface (2) 10/100/1000 Ethernet ports
Wi-Fi standards 5 GHz: 802.11a/n/ac
2.4 GHz: 802.11b/g/n
Antenna gain dBi 2.5 for 5 GHz
2 for 2.4 GHz
Max data rate 5 GHz: 867 Mbit/s
2.4 GHz: 300 Mbit/s
Number of chains 5 GHz: 2
2.4 GHz: 2
PoE in 802.3af/at PoE out Passive PoE up to 57V PoE in input Voltage 17-57 V Number of DC inputs 1 (PoE-IN) DC jack input Voltage 10-30 V Max out per port output 400 mA (input > 30 V)
500 mA (input < 30 V)

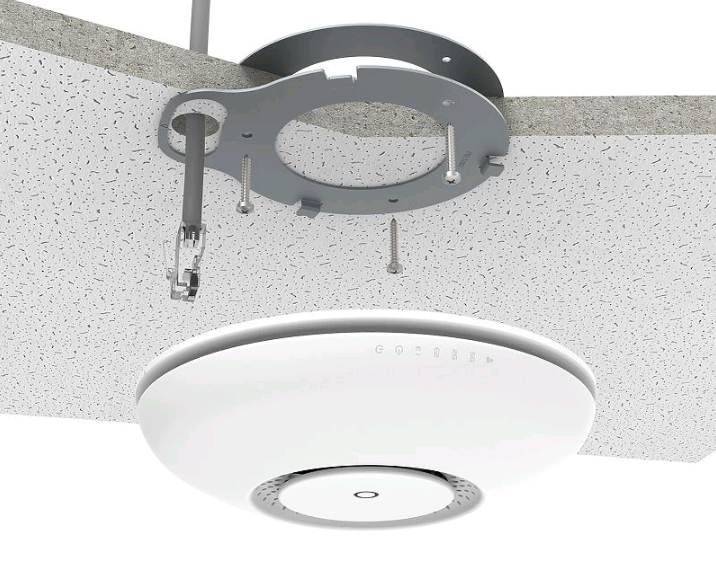

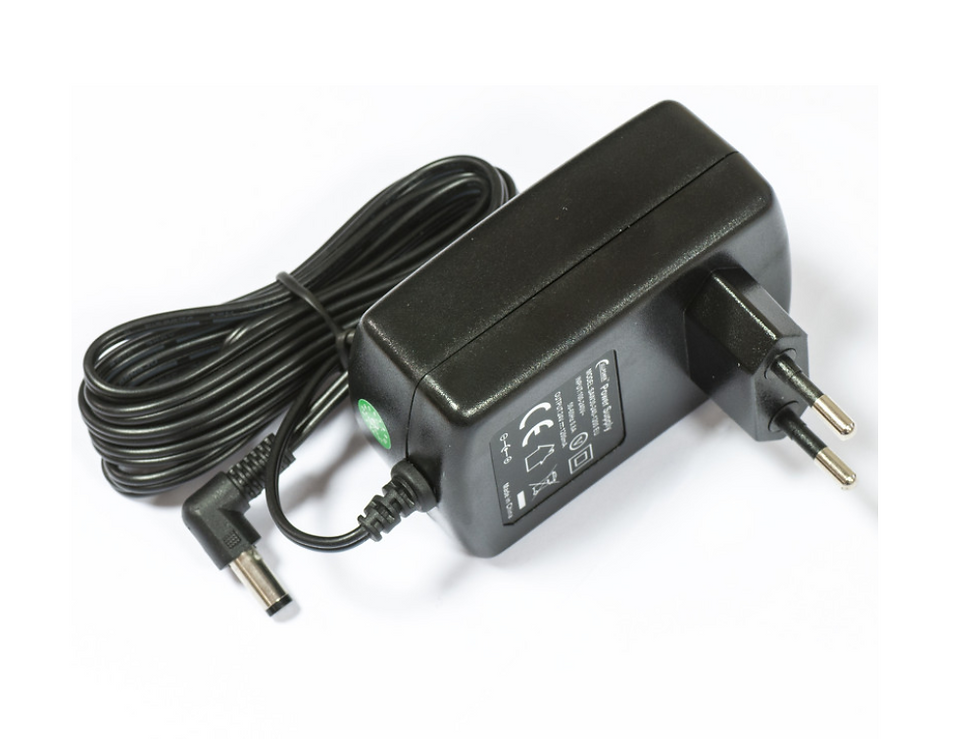

Max total out (A) 500 mA Max power consumption 24 W Included parts 24V 1.2A power adapter (EU/US plug), Gigabit PoE injector, Ceiling mount, K-46 screw kit
