  • 8 10/100Mbps Fast Ethernet ports
  • 1 10/100/1000BASE-T Gigabit Ethernet port
  • 1 1000BASE-X mini-GBIC SFP interface
  • Complies with IEEE 802.3af/at Power over Ethernet end-span
  • Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • 120-watt PoE budget
  • 8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8)
  • Hardware DIP switch for "Standard", "VLAN' and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in the standard mode
  • Automatic address learning and address aging
  • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

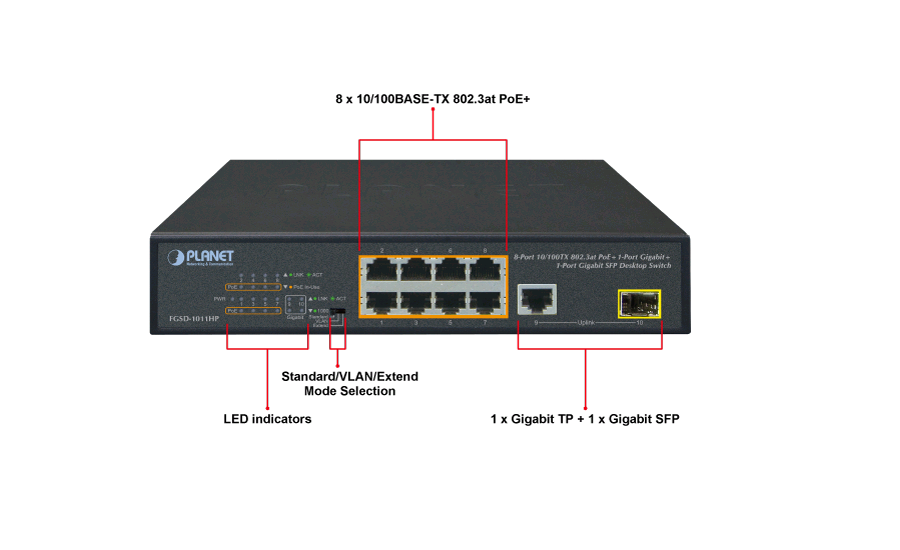

Planet FGSD-1011HP 8-Port 10/100TX PoE + 1-Port 10/100/1000T + 1-Port SFP Switch

  • Dimensions 220 x 150 x 44 mm (W x D x H)
    Weight 1220 g
    Power Supply AC 100~240V, 2.5A max.
    Max. Power Consumption

    135 W, 463.2 BTU

    ESD Protection Contact discharge of ±6KV DC
    Air discharge of ±8KV DC
    DIP Switch 100m distance in standard mode
    250m distance in extend mode (based on the cable category)
    Network Interface

    (8) 10/100BASE-TX MDI/MDI-X RJ45 ports

    (1) 10/100/1000BASE-T MDI/MDI-X RJ45 port

    (1) 100/1000BASE-X SFP/mini-GBIC interface

    (8) 802.3af/at PoE (Ports 1 to 8)

    Switch Fabric 5.6Gbps
    Switch Throughput 4.16Mpps @64bytes
    PoE Power Output Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
    Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
    Power Pin Assignment 1/2 (+), 3/6 (-)
    PoE Power Budget 120 W
