Planet FGSW-1816HPS 16-Port 10/100TX PoE + 2-Port Gigabit TP/SFP Combo Switch
  • 16-port 10/100Base-TX RJ-45 copper with PoE in-line supported
  • 2-port 10/100/1000Base-T RJ-45 copper
  • 2 1000Base-X mini-GBIC/SFP slots to share with Port-17 to Port-18
  • Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
  • Complies with IEEE 802.3af Power over Ethernet End-Span PSE
  • Up to 16 IEEE 802.3at / 802.3af devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Detects powered device (PD) automatically
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m

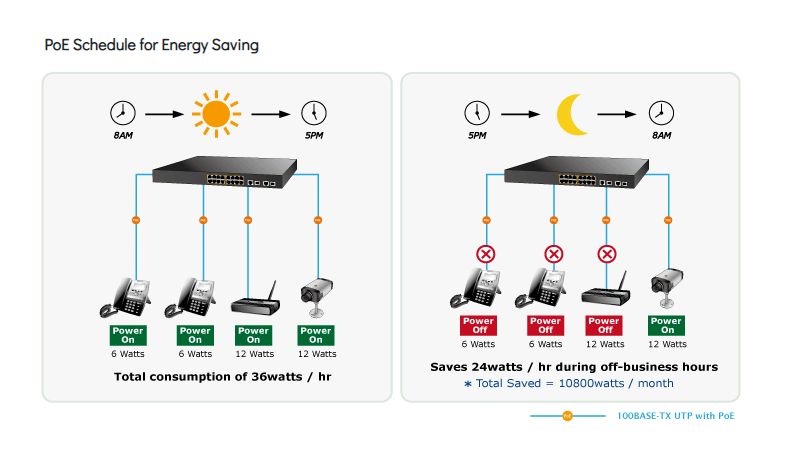

  • PoE Management
  • Auto-MDI/MDI-X detection on each RJ-45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Supports VLAN, Link Aggregation, Spanning Tree Protocol
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port

Planet FGSW-1816HPS 16-Port 10/100TX PoE + 2-Port Gigabit TP/SFP Combo Switch

HK$2,470.00Price
  • Dimensions 440 x 200 x 44.5 mm, 1U (W x D x H)
    Weight 2.55 kg
    Power Supply 100~240V AC, 50/60Hz, 4A
    Max. Power Consumption 240 W / 816 BTU
    ESD Protection 2KV DC
    Network Interface

    (16) 10/100Base-TX RJ-45 Auto-MDI/MDI-X copper ports

    (2) 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

    (2) 1000Base-X SFP, shared with Port-17 to Port-18
    Switch Fabric 7.2Gbps / non-blocking
    Switch Throughput 5.35Mpps@64Bytes
    Maximum Transmit Unit size  1536 Bytes
    PoE Power Output Per Port 52V DC, Max. 30.8 W
    Power Pin Assignment 1/2(+), 3/6(-)
    PoE Power Budget 220 watts (max.)
    Port Mirroring TX / RX / Both
    Many-to-1 monitor
    VLAN 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs
    Port-based VLAN, up to 18 VLAN groups
    MTU VLAN
    Link Aggregation 2 groups of 4-Port 10/100Base-TX trunk supported
    1 group of 2-Port 10/100/1000Base-T trunk supported
    QoS Allow to assign low / high priority on each port
    First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
    IGMP Snooping IGMP (v1/v2) Snooping, up to 32 multicast groups
    Security Control MAC address binding
    TCP & UDP filter
    Basic Management Interfaces Web Browser, SNMP v1
