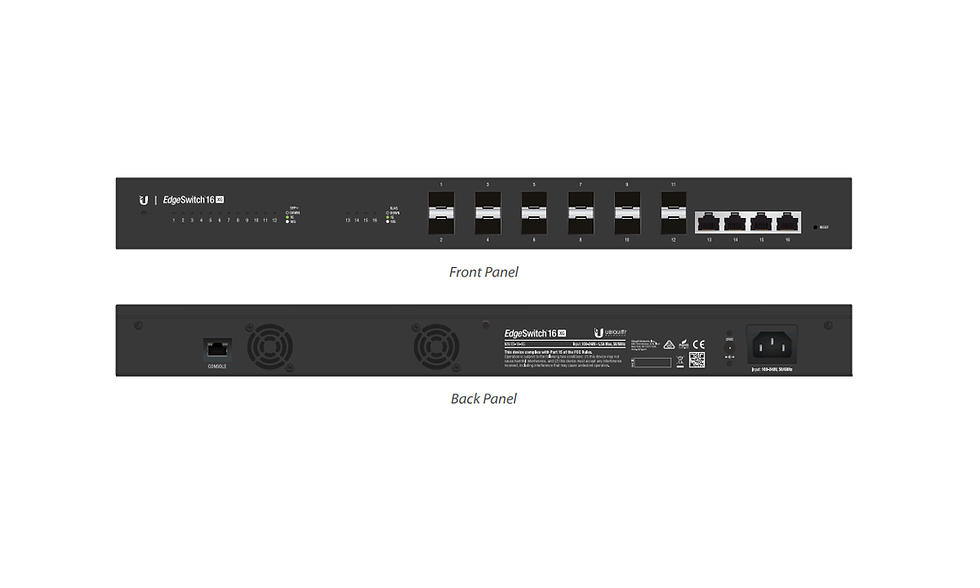

Ubiquiti ES-16-XG EdgeSwitch 10G 16-Port Managed Aggregation Switch

Dimenions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight	Without Mount Brackets 2.62 kg (5.78 lb) With Mount Brackets 2.71 kg (5.97 lb)
Total Non-Blocking Throughput	160 Gbps
Switching Capacity	320 Gbps
Forwarding Rate	238.10 Mpps
Max. DC Power Consumption	36W (Excludes SFP/SFP+ Modules)
Power Method	AC 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Supported Voltage Range	100 to 240VAC 25 to 16VDC
Power Supply	AC/DC, Internal, 56W DC
LEDs	Speed/Link/Activity (All Data Ports)
Interfaces	Management: (1) RJ45 Serial Port, Ethernet In/Out Band Networking: (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
Rack Mount	Yes, 1U High
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV







• ​Free Next-Day Door Delivery to commercial or industrial area or residential address by S.F. Express or HKPost is provided on orders over HK$199. ​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm)

• ​Free Next-Day Delivery to S.F. Express Service Centers or S.F. Express Stores or EF Lockers is provided on orders over HK$199. Please add the S.F. Express location code on your order.​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm) Please click below to find the location code.

  • SF business stations

  • SF store locations

  • EF locker locations

• Free Door Delivery (not applicable to outlying islands) is provided for product packing box larger than 70 x 40 x 32 cm.

  • An additional fee of HK$80 for Tung Chung and Ma Wan locations will be charged upon delivery. Only cash payment is accepted on delivery.

  • An additional fee of HK$150 for Discovery Bay locations will be charged upon delivery. Only cash payment is accepted on delivery.

One-year Parts and Labor Limited Warranty. Customer is responsible for shipping (Including packaging)

Cat6 Patch Cord 1-meter

Datasheet

Quick start guide
