  • Affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
  • Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup.
  • Designed for long-range applications, the LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).
  • Improved Radio Design
  • Improved Mounting
  • Improved Surge Protection
  • Management WiFi Radio/UNMS mobile app
  • AirOS 8
  • UNMS mobile app for Android and IOS

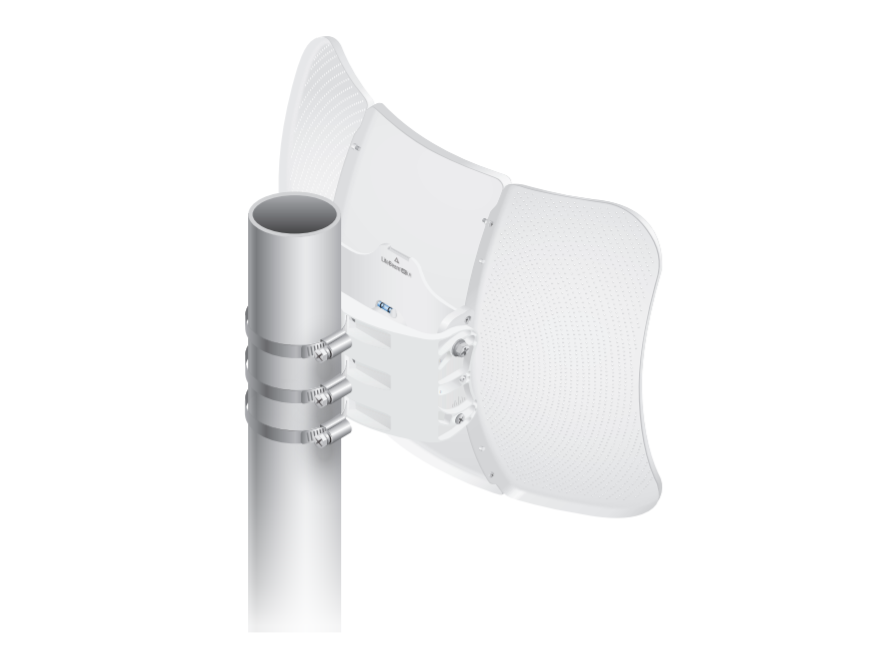

Ubiquiti LBE-5AC-LR airMAX ac CPE LiteBeam 5AC Long Range

  • Dimensions 512 x 385.75 x 258.3 mm

    Without Mount: 1.360 kg (2.998 lb)

    With Mount 1.735 g (3.825 lb)

    Networking Interface (1) 10/100/1000 Ethernet Port
    Gain 26 dBi
    Supported Voltage Range 24V ± 10%
    Max. Power Consumption 7W
    Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
    Operating Frequency Worldwide: 5150-5875 MHz
