  • The latest generation of Ubiquiti Networks® airMAX® CPE for customer locations
  • Directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved.
  • Combined the radio and antenna to create a more efficient and compact CPE
  • Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
  • No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
  • Pivots on its ball joint for easy aiming.

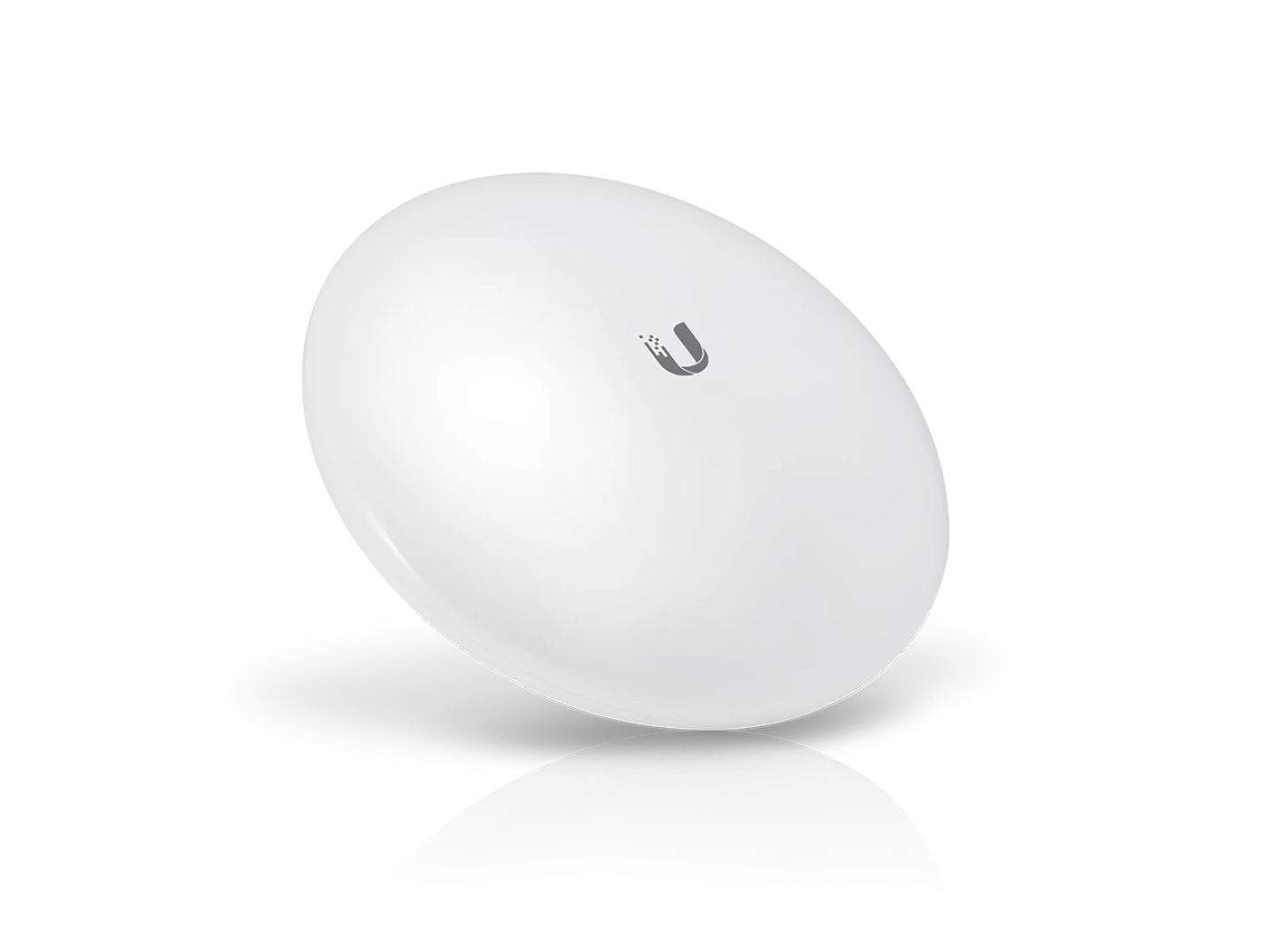

Ubiquiti NBE-M5-16 airMAX CPE NanoBeam M5 16

  • Dimensions 140 x 140 x 54 mm
    Weight 320 g (0.71 lb)
    Networking Interface

    (1) 10/100 Ethernet Port

    Gain 16 dBi
    Output Power 26 dBm
    Max. Power Consumption 6 W
    Power Supply 24V, 0.5A PoE
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Wind Loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    Vibration Test IEC 68-2-6
    Temperature Shock Test IEC 68-2-14
    Operating Frequency Worldwide: 5150-5875 MHz
