  • Ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor
  • Featuring a panel antenna and dual-polarity performance
  • Indoor/Outdoor
  • Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency.
  • A secondary Ethernet port with software-enabled PoE output for seamless IP video integration
  • The remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.

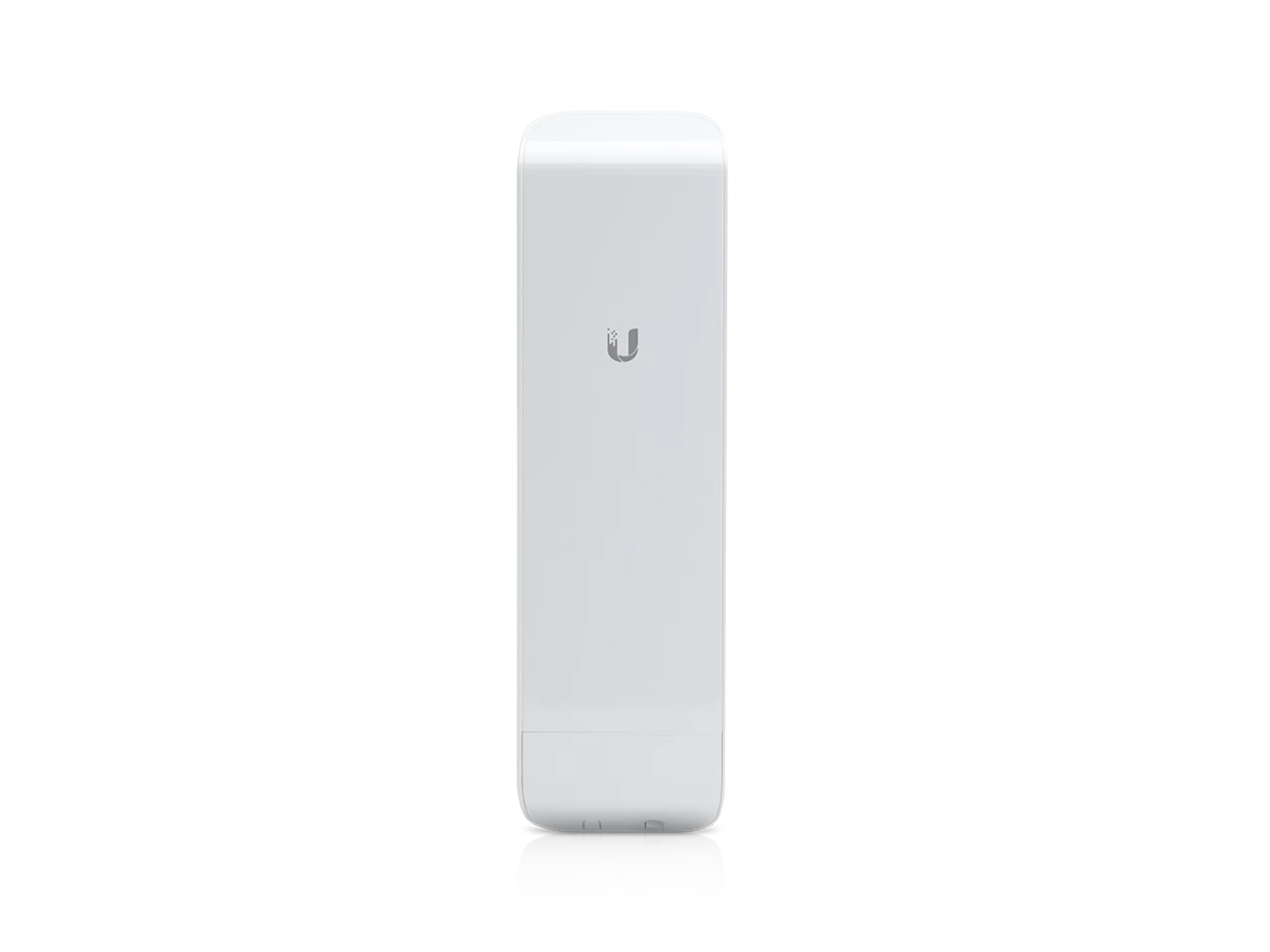

Ubiquiti NSM2 airMAX CPE NanoStation M2

  • Dimensions

    294 x 31 x 80 mm


    400 g (14.11 oz)

    Networking Interface (2) 10/100 Ethernet Port
    Gain 10.4-11.2 dBi
    Max. Power Ouput 28 dBm
    Max. Power Consumption 8W
    Power Supply (PoE) 24V, 0.5A
    Power Method

    Passive PoE (Pairs 4, 5+; 7, 8 Return)

    Operating Temperature -30 to 75° C (-22 to 167° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4
    Operating Frequency 2412-2462 MHz
    Frequency 2.4 GHz


​Free Local Delivery by S.F. Express is provided on orders over HK$199.
