  • Revolutionary airPrism RF filtering technology
  • Proprietary airMAX ac chipset
  • For PtP or PtMP links using the 2.4 GHz radio band
  • Complete coverage of the 2.4 GHz spectrum with a single radio
  • Flexibility in configuring channel bandwidths (subject to local country regulations)
  • Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
  • Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability.
  • airMAX ac supports up to 330+ Mbps (maximum 40 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.
  • airPrism technology creates a high SNR by isolating signals within the operating channel and rejecting interference using specialized circuitry, the High‑Selectivity Receiver (HSR).
  • airPrism technology removes up to an additional 30+ dB of adjacent channel interference through the active filtering design

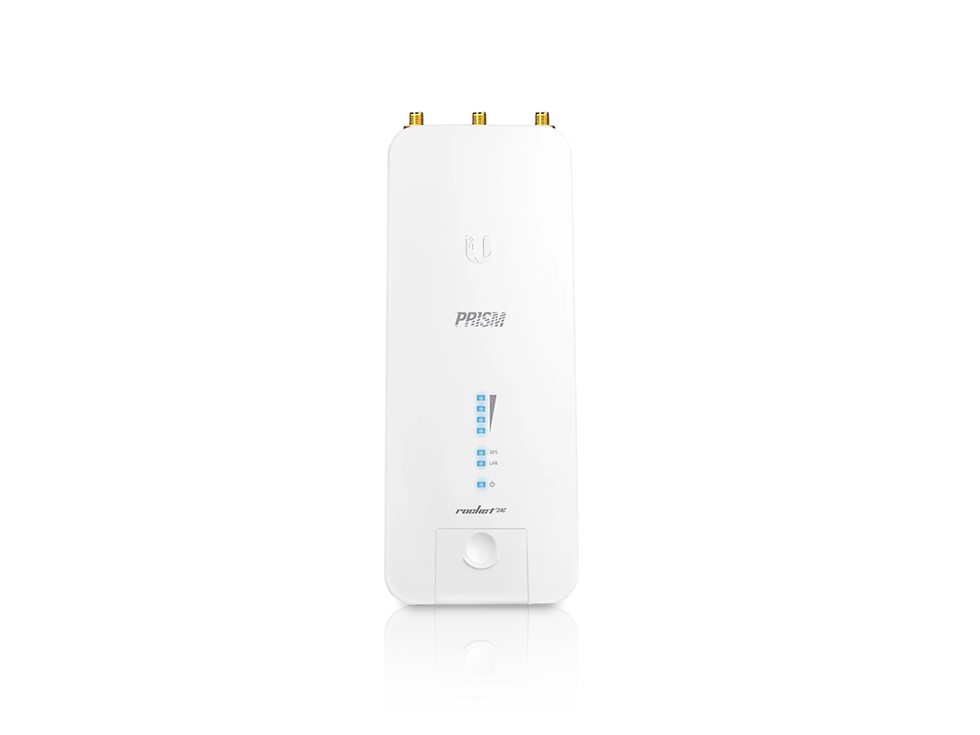

Ubiquiti R2AC airMAX ac BaseStation Rocket 2AC Prism

  • Dimensions 88 x 40 x 230 mm
    Weight 440 g (15.52 oz)
    Networking Interface

    (1) 10/100/1000 Ethernet Port

    RF Connectors

    (2) RP-SMA (Waterproof)

    (1) GPS* (Waterproof )

    Output Power 27 dBm
    Max. Power Consumption 8.5 W
    Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 18-26VDC
    Modes Access Point, Station
    Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
    Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
    QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
    Specific Features 10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
    Operating Frequency Worldwide: 2412 - 2472 MHz
