Integrated Enterprise WiFi6 (4x4 MIMO)
- Full UniFi OS and UniFi application support
- 3.5+ Gbps routing
- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
- 4.7" touchscreen for management
- Integrated 128 GB SSD & pre-installed 512 GB microSD card

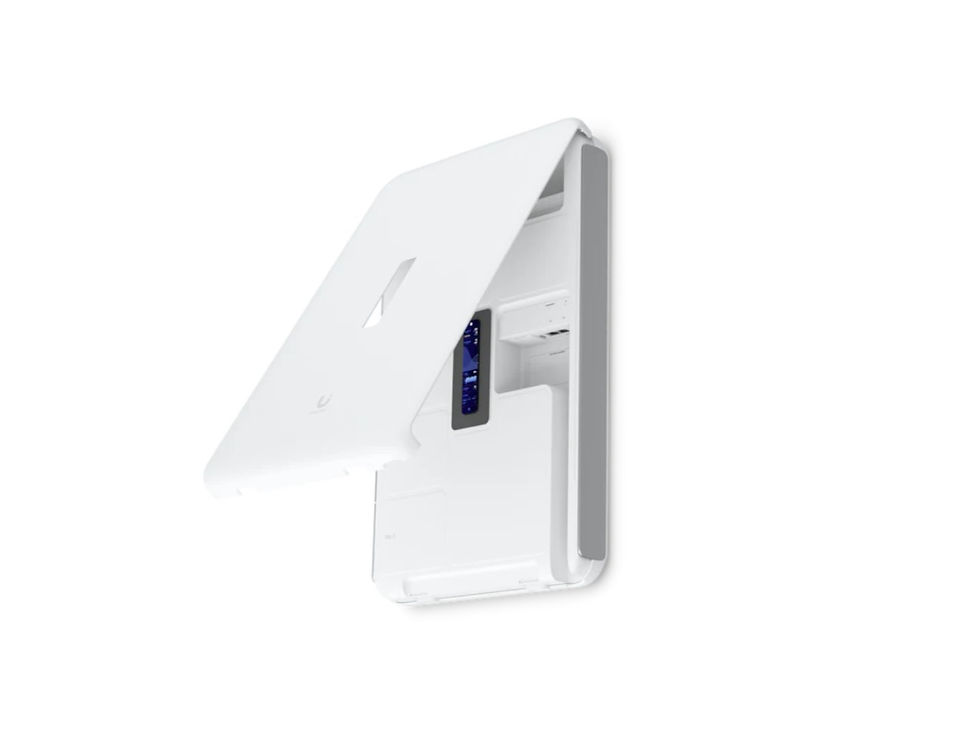

Ubiquiti UDW UniFi Dream Wall
Dimensions 549 x 342 x 62 mm Weight 8.6 kg (19 lb) Enclosure Polycarbonate, galvanized steel, aluminum alloy Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System memory 4 GB DDR4 On-board storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD cardExpansion slot Micro SD memory card*
(*Requires a memory card with at least 128 GB of storage)
Management interface Ethernet
Bluetooth
WiFiNetworking interface (17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 portSFP+ interface (1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ portPoE interface (4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)Power method Universal AC input 100-240V AC, 7A Max., 50/60Hz Power supply (2) Hot-Swappable AC/DC 550W PSU*
(*Comes with (1) pre-installed PSU)Max. power consumption 532W Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60WMax. TX power 2.4 GHz: 23 dBm
5 GHz: 26 dBm
MIMO 2.4 GHz: 2 x 2
5 GHz: 4 x 4
Throughput rate 2.4 GHz: 300 Mbps
5 GHz: 2.4 Gbps
Antenna gain 2.4 GHz: 5.9 dBi
5 GHz: 6 dBi
ESD/EMP protection Air: ± 8kV, contact: ± 4kV LCM display (1) 4.7" touchscreen Button Factory reset Mounting Wall mount (included) Operating temperature -10 to 40° C (14 to 104° F) Operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ -
