WiFi 7
5 spatial streams
160 m² (1,750 ft²) coverage
300+ Client Count
Powered using PoE
2.5 GbE uplink

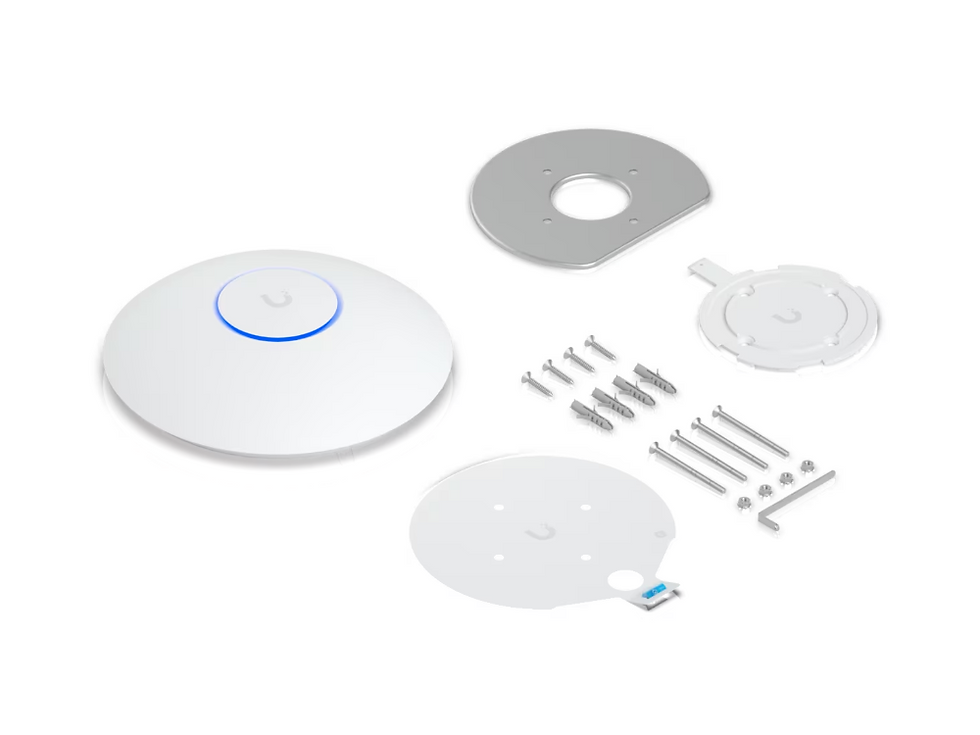

Ubiquiti U7-LR UniFi Access Point WiFi 7 Long Range
Dimensions
Ø175.7 x 43 mm (Ø6.9 x 1.7")
Weight
448 g (15.8 oz)
Enclosure material
Polycarbonate, Aluminum alloy
Mounting material
Polycarbonate, galvanized steel (SGCC)
Management Interface
Ethernet
Networking Interface
(1) 2.5 GbE RJ45 port
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
Power Method
PoE
Supported Voltage Range
42.5 to 57VDC
Max. Power Consumption
14W
Max. TX Power
5GHz: 27 dBm 2.4GHz: 26 dBm
MIMO
5GHz: 3 x 3 (DL/UL MU-MIMO) 2.4GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5GHz: 4.3 Gbps (BW160) 2.4GHz: 688 Mbps (BW40)
Antenna Gain
5GHz: 6 dBi 2.4GHz: 4 dBi
Wi-Fi Standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Max. Client Count
300+
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 - 95% Noncondensing
