Ubiquiti U7-Pro-Wall UniFi Access Point WiFi 7 Pro Wall

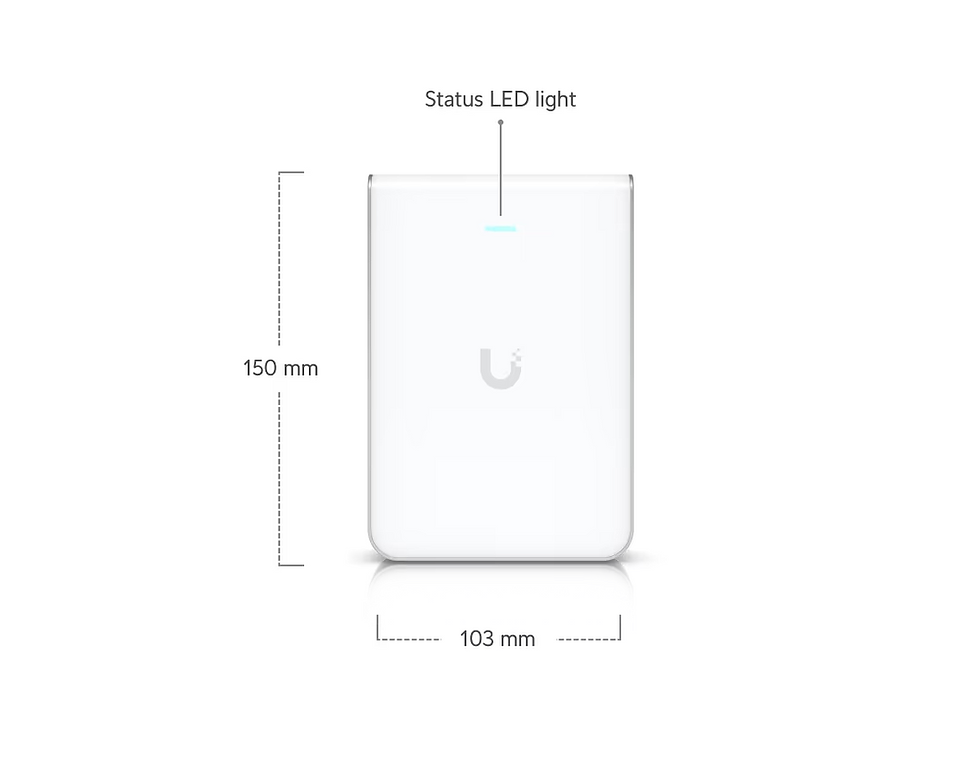

Dimensions	150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight	580 g (1.3 lb)
Networking Interface	(1) 1/2.5 GbE RJ45 port
Power Method	PoE+
Supported Voltage Range	44 to 57VDC
Power Supply	UniFi PoE switch
Max. power consumption	22W
Max. TX power	2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: 23 dBm
MIMO	2.4 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate	2.4 GHz: 688 Mbps (BW40) 5 GHz: 4.3 Gbps (BW240) 6 GHz: 5.7 Gbps (BW320)
Antennas Gain	2.4 GHz: 4 dBi 5 GHz: 5 dBi 6 GHz: 6 dBi
Button	Factory reset
Mounting	Wall (Included) Table stand, flush mount (Optional)
Wi-Fi Standards	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
VLAN	802.1Q
Guest Traffic Isolation	Supported
Concurrent Clients	300+







• ​Free Next-Day Door Delivery to commercial or industrial area or residential address by S.F. Express or HKPost is provided on orders over HK$199. ​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm)

• ​Free Next-Day Delivery to S.F. Express Service Centers or S.F. Express Stores or EF Lockers is provided on orders over HK$199. Please add the S.F. Express location code on your order.​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm) Please click below to find the location code.

  • SF business stations

  • SF store locations

  • SF locker locations

• Free Door Delivery (not applicable to outlying islands) is provided for product packing box larger than 70 x 40 x 32 cm.

  • An additional fee of HK$80 for Tung Chung and Ma Wan locations will be charged upon delivery. Only cash payment is accepted on delivery.

  • An additional fee of HK$150 for Discovery Bay locations will be charged upon delivery. Only cash payment is accepted on delivery.

One-year Parts and Labor Limited Warranty. Customer is responsible for shipping (Including packaging)

Cat6 Patch Cord 1-meter

Datasheet

Quick installation guide
