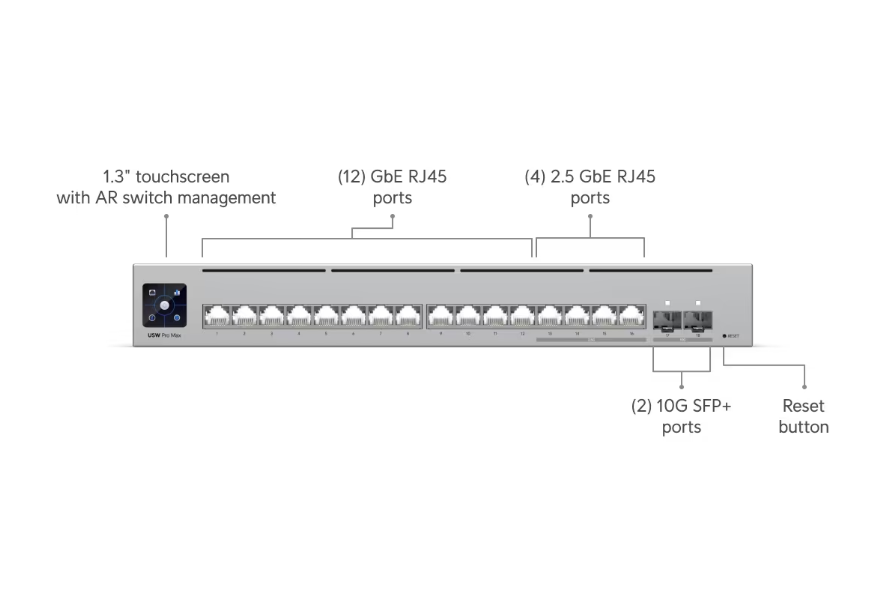

Ubiquiti USW-Pro-Max-16 UniFi 16-port Layer 3 Switch

Dimensions	325.1 x 160 x 43.7 mm
Weight	1.95 kg (4.3 lb)
Enclosure Materials	SGCC steel
Management Interfaces	Ethernet In-Band
Networking Interfaces	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
Total Non-Blocking Throughput	42 Gbps
Switching Capacity	84 Gbps
Forwarding Rate	62.496 Mpps
Power Method	Type-C adapter
Power Supply	5V, 25W
Max. Power Consumption	25W
LCM Display	(1) 1.3" Touchscreen
Button	Factory Reset
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
UniFi Network	Version 8.1.127 and later
