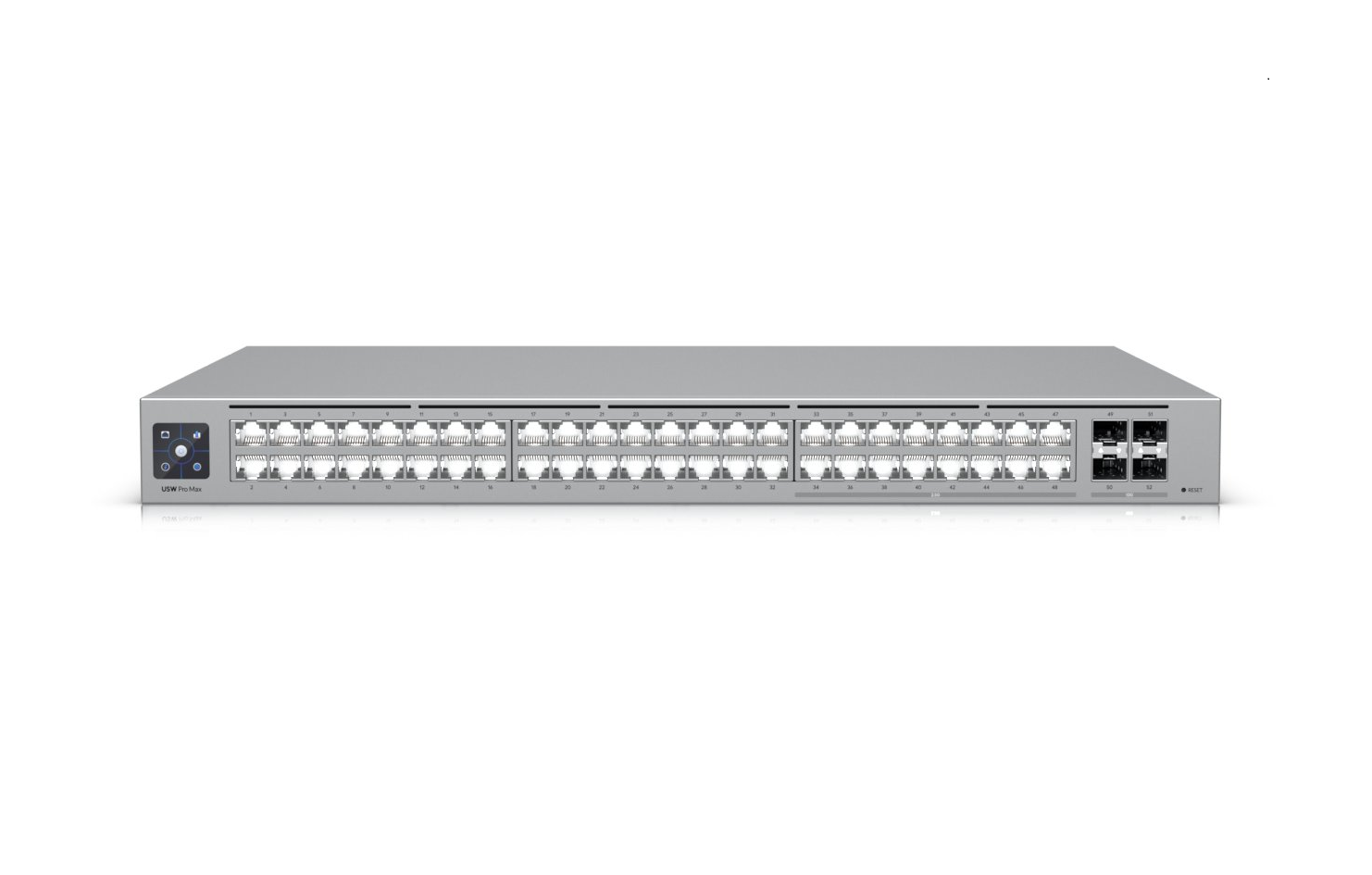

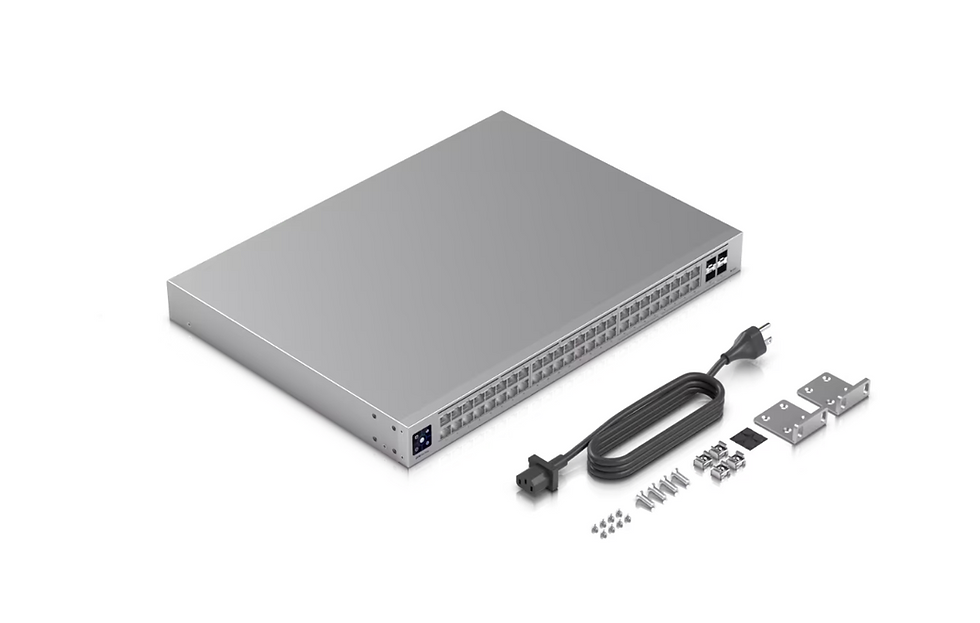

Ubiquiti USW-Pro-Max-48 UniFi 48-port Layer 3 Switch

Dimensions	442 x 325 x 44 mm
Weight	Without mount: 4.8 kg With mount): 4.9 kg
Enclosure Materials	SGCC steel
Management Interfaces	Ethernet In-Band
Networking Interfaces	(32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports
Total Non-Blocking Throughput	112 Gbps
Switching Capacity	224 Gbps
Forwarding Rate	166.656 Mpps
Power Method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Power Supply	AC/DC, internal, 100W
Max. Power Consumption	100W
LCM Display	(1) 1.3" Touchscreen
Button	Factory Reset
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
UniFi Network	Version 8.0.24 and later















• ​Free Next-Day Door Delivery to commercial or industrial area or residential address by S.F. Express or HKPost is provided on orders over HK$199. ​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm)

• ​Free Next-Day Delivery to S.F. Express Service Centers or S.F. Express Stores or EF Lockers is provided on orders over HK$199. Please add the S.F. Express location code on your order.​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm) Please click below to find the location code.

  • SF business stations

  • SF store locations

  • SF locker locations

• Free Door Delivery (not applicable to outlying islands) is provided for product packing box larger than 70 x 40 x 32 cm.

  • An additional fee of HK$80 for Tung Chung and Ma Wan locations will be charged upon delivery. Only cash payment is accepted on delivery.

  • An additional fee of HK$150 for Discovery Bay locations will be charged upon delivery. Only cash payment is accepted on delivery.

One-year Parts and Labor Limited Warranty. Customer is responsible for shipping (Including packaging)

Cat6 Patch Cord 1-meter

Datasheet

Quick start guide
