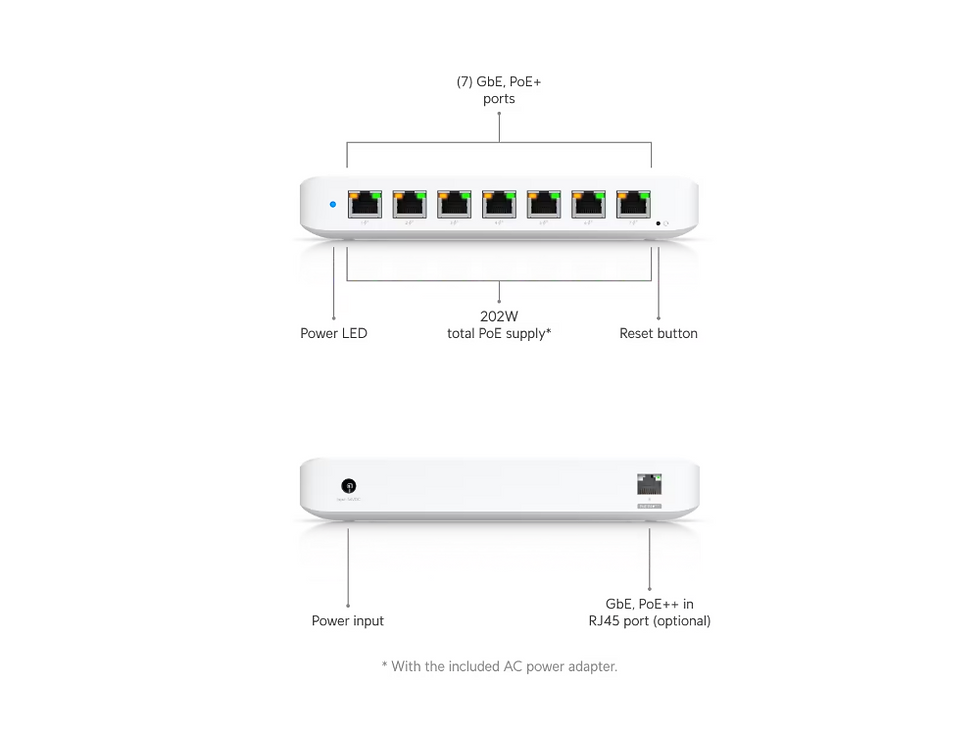

- A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE PoE++ input port*
- *PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
Ubiquiti USW-Ultra-210W UniFi 8-port Layer 2 GbE PoE Switch (202W)
Dimensions 203 x 76 x 33 mm
(8 x 3 x 1.3")
Weight Device: 320 g
Wall mount: 45 g
Adapter: 770 g
Enclosure materials Polycarbonate Management interface Ethernet Networking interface (8) GbE RJ45 ports PoE interface (7) PoE+
(1) PoE++ input
Total non-blocking throughput 8 Gbps Switching capacity 16 Gbps Power method (1) AC/DC adapter (Included)
(1) PoEPower Supply AC/DC, external, 210W Supported voltage range 50—57V DC/PoE
Max. power consumption 9W (Excluding PoE Output) with PoE input
8W (Excluding PoE Output) with adapter input
210W (Including PoE Output) with 210W AC adapter inputTotal available PoE PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W
Max. PoE wattage per port by PSE 30W
Button Factory reset Operating temperature PoE++ input: -30 to 60° C (-22 to 140° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC, Anatel Application UniFi Network (Version 8.0.7 and later) -
