- (1) 1.3” LCM color touchscreen with AR switch management
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- (1) USP RPS DC input
- 760 Gbps switching capacity
- Layer 3 switching features

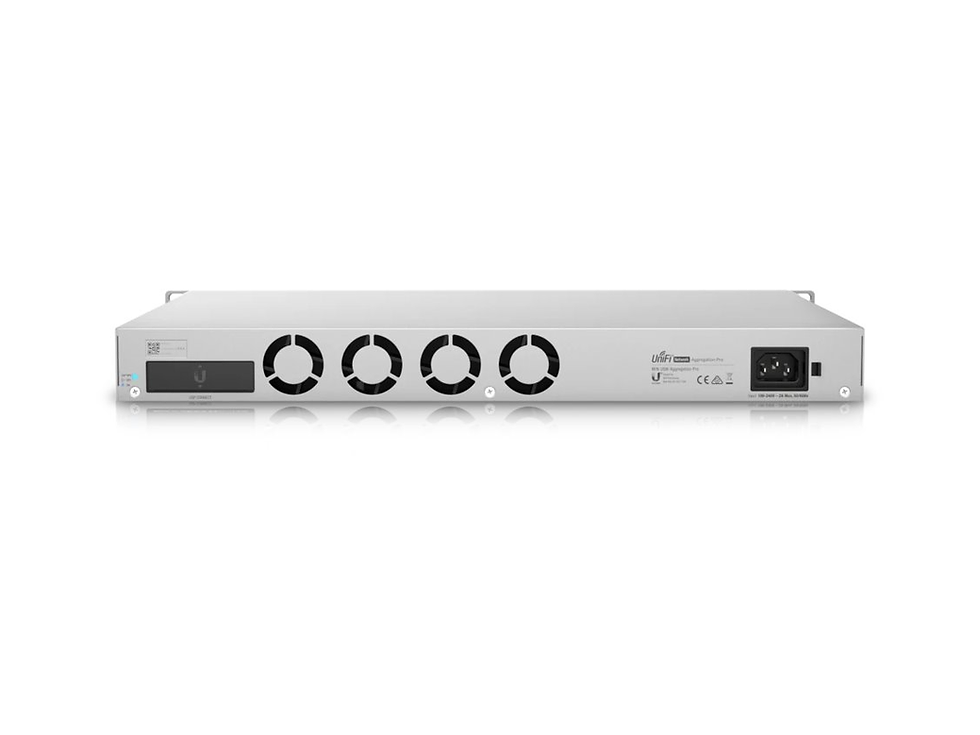

Ubiquiti USW-Pro-Aggregation UniFi Switch Pro Aggregation
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") Weight Rack-Mount Brackets Excluded: 4.6 kg (10.14 lb)
Rack-Mount Brackets Included: 4.7 kg (10.36 lb)
Networking Interfaces (28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
Management Interface) Ethernet In-Band
Total Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Max Power Consumption 100W Modes SMB Layer 3 10/25 G Fiber Switch Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
*ThefourSFP28ports don't supportmixedspeedat25Gbps mode.OnceoneoftheSFP28ports is conguredat25Gbps mode,theothers will belimitedat25Gbps too. TheSFP28ports only supportmixedspeedwhenall ports areat1Gbps or10Gbps.
-
