Your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
AI event detections
Connect and power using PoE
Integrated 2-way audio
Includes PoE Chime
Weather-resistant (outdoor covered)

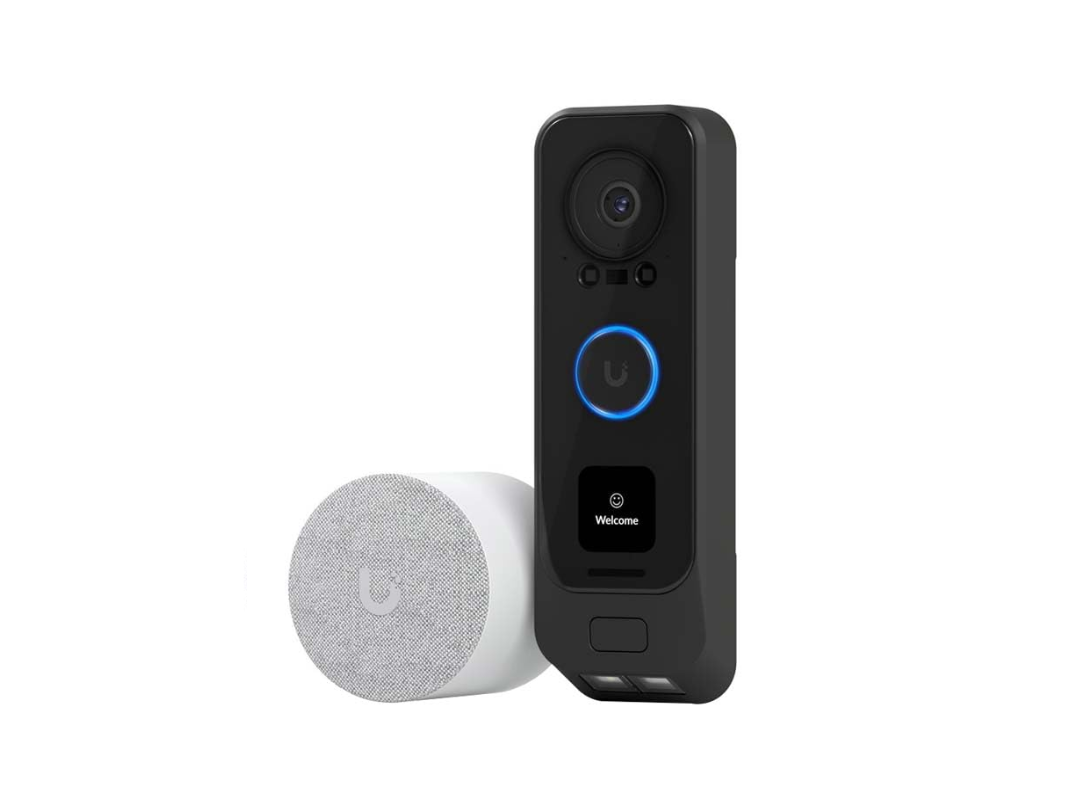

Ubiquiti UVC-G4 Doorbell Pro PoE Kit UniFi UVC G4 Doorbell Professional PoE Kit
UVC-G4 Doorbell Pro
Dimensions
Device: 160.6 x 51.7 x 35.1 mm
Wall mount: 159.3 x 50.3 x 17.5 mm
Wedge: 161.1 x 52.1 x 25.7 mm
On-wall mount: 161.1 x 52.1 x 25.75 mm
Weight
Device: 264 g
Wall mount: 56 g
Wedge: 33 g
On-wall mount
Enclosure
Aluminum alloy, polycarbonate
Mount material
Wall mount: aluminum alloy Wedge: polycarbonate On-wall mount: polycarbonate
Weatherproofing
IPX4
Optics sensor
Main camera: 5MP CMOS Package camera: 8MP CMOS
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video compression
H.264
Resolution
Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate
30 FPS
Microphone
Yes (Can be disabled for the Doorbell)
Speaker
Yes
System processor
Quad-core Arm® Cortex®-A53 based chip
Networking Interface
GbE RJ45 port
Power Method
PoE
Supported voltage range
37-57V DC
Max. Power Consumption
7W
Button
(1) Ring button, (1) Factory reset
LEDs
Link/activity
Operating Temperature
-30 to 40º C (-22 to 104º F)
Operating Humidity
0 to 90% Noncondensing
Certifications
CE, FCC, IC
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
UP-Chime PoE
Dimensions
Device: Ø62 x 54 mm In-wall mount: Ø89 x 63.1 mm On-wall mount: Ø62 x 20.2 mm
Weight
Device: 264 g In-wall mount: 91 g On-wall mount: 28 g
Enclosure
Aluminum alloy, polycarbonate
Mount material
Polycarbonate, zinc alloy
Buzzer
Yes
Networking Interface
10/100 MbE port
Power Method
PoE
Supported Voltage Range
44–57V DC
Max. Power Consumption
3.5W
Button
Factory reset
LEDs
Link/activity
Operating Temperature
0 to 40° C (32 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
