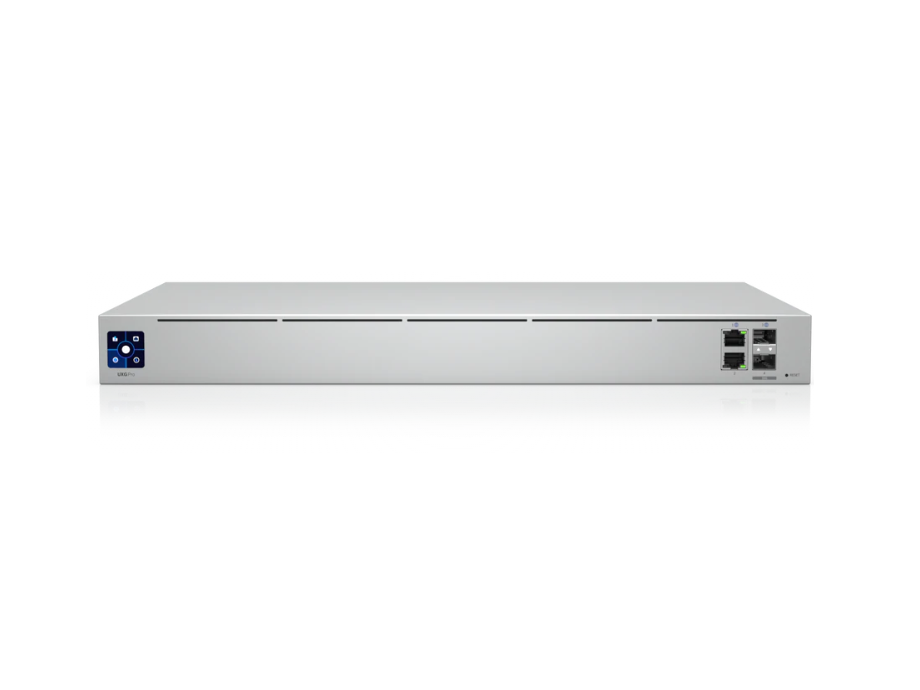

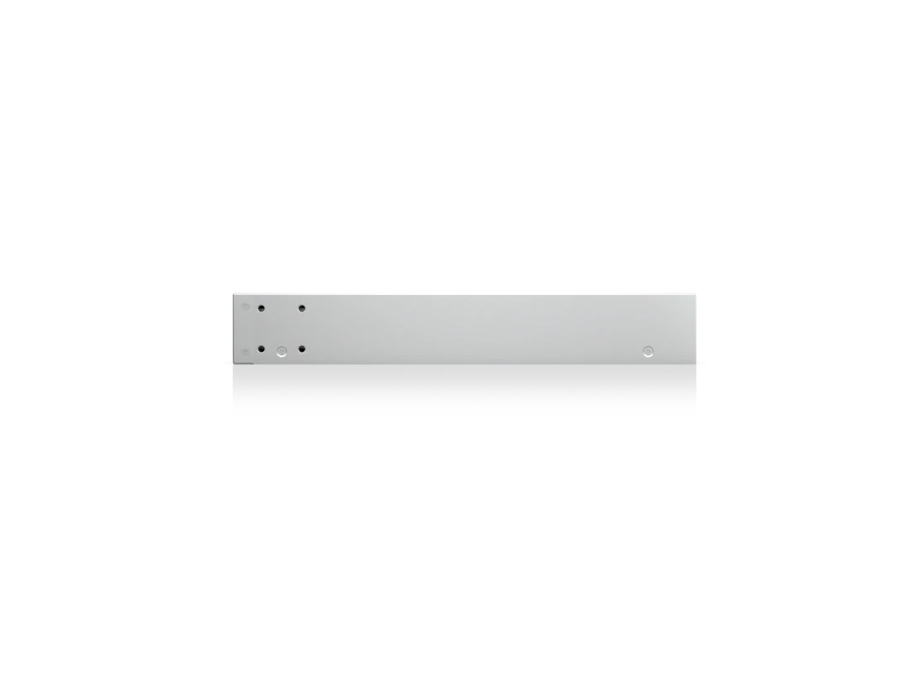

Ubiquiti UXG-Pro UniFi Next-generation Gateway Pro

Dimensions	442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight	3.42 kg (7.54 lb)
Power Consumption	40W
Power Supply	Internal AC/DC Power Adapter, 60W (24V, 2.5A)
Power Input	110 - 240VAC
LEDs	System: Status Data Ports: Speed/Link/Activity
Networking Interfaces	Serial Console Port:  (1) RJ45 Serial Port Data Ports:  (2) 10/100/1000 RJ45 LAN Ports (2) 1 Gbps RJ45/SFP Combination WAN Ports
Layer 3 Forwarding Performance	Packet Size: 64 Bytes - 2,400,000 pps Packet Size: 512 Bytes or Larger - 4 Gbps (Line Rate)
Processor	Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory	2 GB DDR3 RAM
On-Board Flash Storage	4 GB
Rackmount	Yes

Dimensions	442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight	3.42 kg (7.54 lb)
Enclosure materials	Front panel: aluminum CNC Top cover/base: SGCC steel
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory	2 GB DDR4
Networking interface	(1) 1 GbE RJ45 LAN port (1) 10G SFP+ LAN port (1) 1 GbE RJ45 WAN port (1) 10G SFP+ WAN port
Management interface	Ethernet
LCM display	(1) 1.3" touchscreen
Power method	(1) Universal AC input, 200-240VAC, 1.7A max., 50/60 Hz (1) RPS DC input, 11.5VDC, 2.87A
Power supply	AC/DC, internal, 50W
Max. power consumption	30W
ESD/EMP protection	Air: ± 15 kV, contact: ± 8 kV
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 - 95% noncondensing
Certifications	CE, FCC, IC



• ​Free Next-Day Door Delivery to commercial or industrial area or residential address by S.F. Express or HKPost is provided on orders over HK$199. ​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm)

• ​Free Next-Day Delivery to S.F. Express Service Centers or S.F. Express Stores or EF Lockers is provided on orders over HK$199. Please add the S.F. Express location code on your order.​ (** Max. weight and capacity: 20 kg and  70 x 40 x 32 cm) Please click below to find the location code.

  • SF business stations

  • SF store locations

  • EF locker locations

• Free Door Delivery (not applicable to outlying islands) is provided for product packing box larger than 70 x 40 x 32 cm.

  • An additional fee of HK$80 for Tung Chung and Ma Wan locations will be charged upon delivery. Only cash payment is accepted on delivery.

  • An additional fee of HK$150 for Discovery Bay locations will be charged upon delivery. Only cash payment is accepted on delivery.

One-year Parts and Labor Limited Warranty. Customer is responsible for shipping (Including packaging)

Cat6 Patch Cord 1-meter

Datasheet

Quick installtion quide
